JIK-4 Weighing Indicator Dual Channel with two RS-232 port Apr 08, 2022

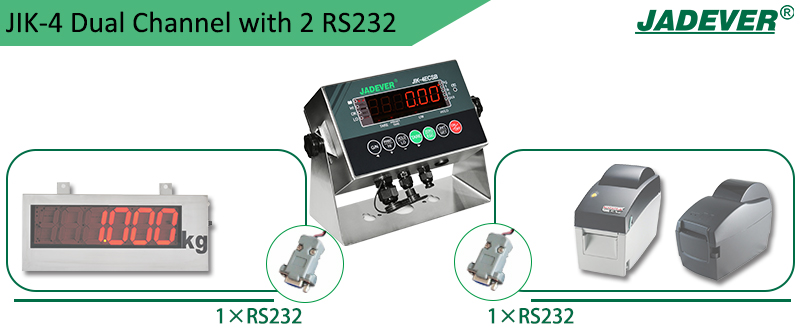

The JIK-4 weighing indicator have dual channel function, you can install two RS-232 board into weighing indicator, then the LED large screen and printer or computer can be connected at the same time.

stainless steel LED digital weighing indicator

What are features of JIK-4 weighing indicator ?

Up to 1/30000 resolution

Waterproof stainless steel structure

Large LCD display or LED red display, It is easy to read.

Easy to operate, with Pre-tare/tare/check weighing/sampling/Net&Gross weight/hold function

With Peak hold & Animal weighing function

Up to8×350Ω Load cell and can be used with different sizes of bench scales

Software filtering function, weighing reaction rate can be allowed to adjust under various condition

Optional:2×RS-232/RELAY/PC/printer/tower light, etc

Ideal for production, packaging, warehouse, shipping and receiving areas.


Model JIK-4CSB JIK-4CESB
Material Stainless Steel
Division 1/30000
Display 6 digits, LCD display 6 digits, Red LED display
Dimension(mm) 224×174×76
Non-Linearity 0.003% of the total weight
A/D conversation △-Σ
A/D internal resolution 700,000
A/D conversation rate Around 10times/sec
Power supply DC9V/1Ah or Rechargeable battery(6V2.8Ah)
Certification CE


If want to know more details, pls check below video.
