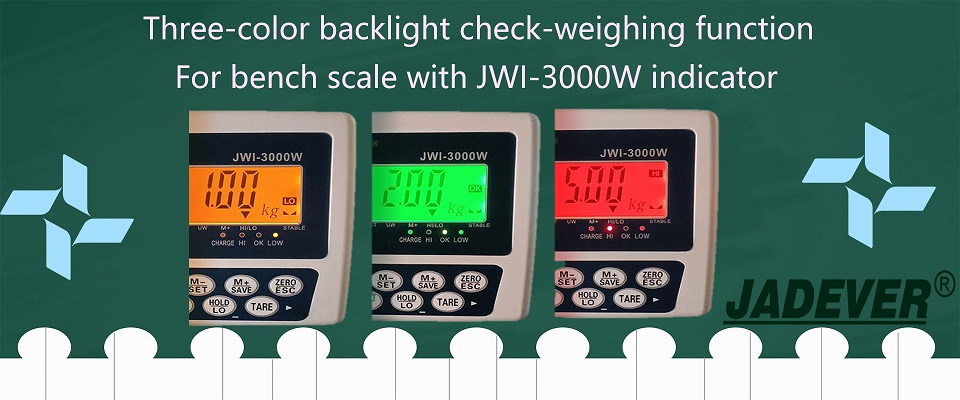

How to operate three-color backlight check-weighing function of JWI-3000W indicator?

1. After setting the check-weighing parameters, put the goods basket on the scale platform

2. Press the “Tare” button to remove the weight of the basket

3. The weight is too low and the screen shows yellow

4. LOW light is on, showing LOW

5. Weight up to standard, screen shows green

6. OK light is on, showing OK

7. When overweight, the screen shows red and alarm

8. HI light is on, showing HI

What are the features of JWI-3000W indicator?

1. Resolution up to 1/15000

2. Single point and linear calibration available

Hold function in peak, stable, or key operation

3. Lower/upper limit weighing alarming function

4. Zero range setting and filter setting for counting under various condition

5. Accumulation, Accumulation Display and Accumulation clear functions

6. RS-232/Relay/Blue Tooth/U-KEY connector/WP wireless print/U-disk module/ Wifi/Ethernet(optional)

7. Ideal for applications in production, packaging, warehouse, inventory, shipping and receiving areas

Specifications:
