Cheap Wireless Crane Scale Made In China

JCW-B wireless crane scale is With impact resistant all steel construction.
  • Brand:

    JADEVER
  • Item NO.:

    JCW-B
  • Product Origin:

    China
  • Product Detail

JCW-B  Wireless Crane Scale


Features:

Impact resistant all steel construction for RFI protection

Patented LN high precision crane scale load cell

Optional operation temperature normal(-15℃~55℃),or thermal(~80℃) environment

6V/4Ah Ni-H rechargeable battey for the scale


Specification:

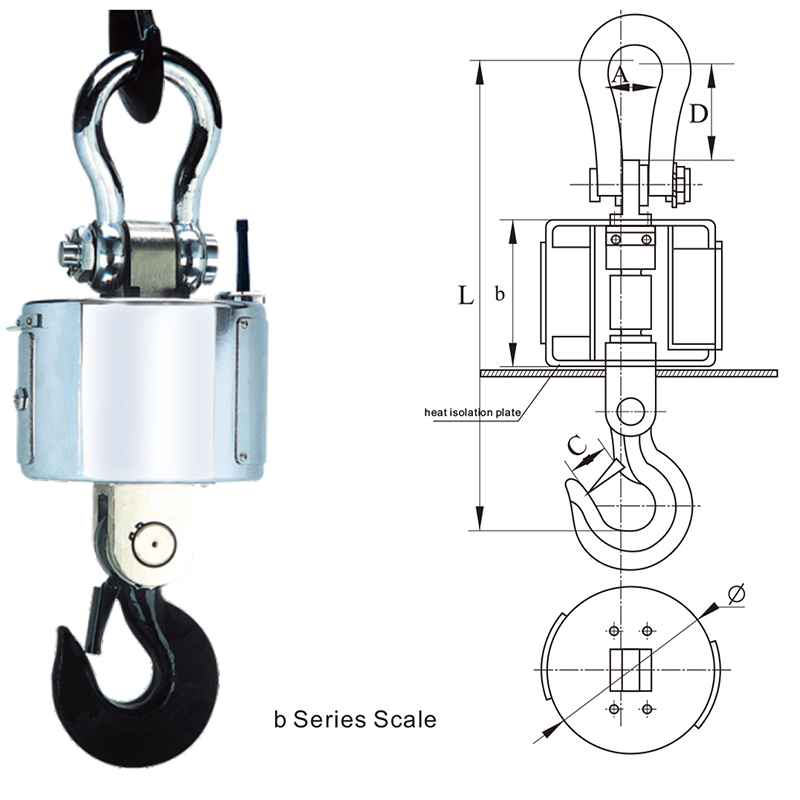

Type Division A b C D L
1t 0.5kg 76 105 34 95 460 190
2t 1kg 76 105 34 95 460 190
3t 1kg 75 140 40 95 500 240
5t 2kg 75 195 56 92 620 270
10t 5kg 106 195 70 117 712 270
15t 5kg 150 220 86 118 897 295
20t 10kg 150 220 86 118 897 295
30t 10kg 150 220 103 172 1050 320
40t 20kg 214 300 105 274 1263 375
50t 20kg 214 300 105 274 1263 375


Optional Indicators

C Indicator


Features

Built-in wharf crane scale auto-weighing accumulating procedure

Memory store up to 2900 weight data set

Easy repair with interchangeable and compatiable  design

Open procedure for adjustment and setting under different working environment

Using RS232 interface to contect the computer

Optional 4-20mA remote transmission module

CⅡIndicator


Features

Built-in thermal microprinter

Memory store up to 2800 weight data set

High definition FSTN display

With RS232, and RS485 optional

Built-in 6V/4.5Ah LFP battery

PⅡIndicator

Features


Smart hand-held wireless indicator with 32 optional frequency points

OLED dot matrix display makes customized interface on boot-up available

Broad range of working temperature, no delay in displaying the weighing data under low temperature

Unique frequency sweeping function, supporting fast match and indicator mutual exchanging

Perform as the weighing indicator or dynamometer by receiving the data transmitted from the A/D converter
