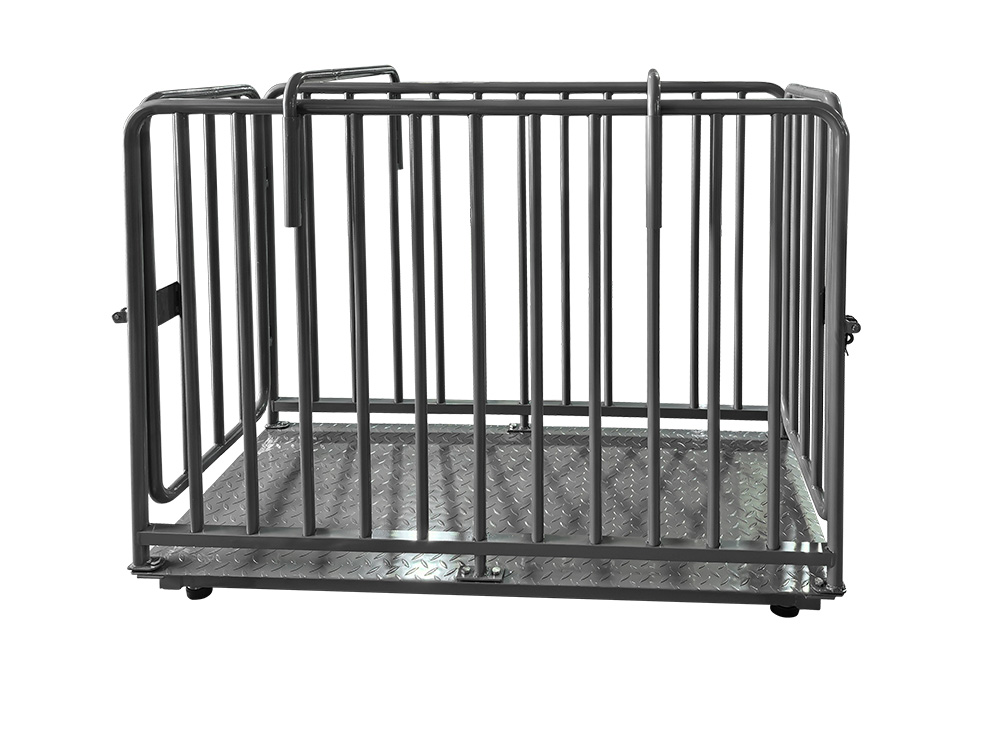

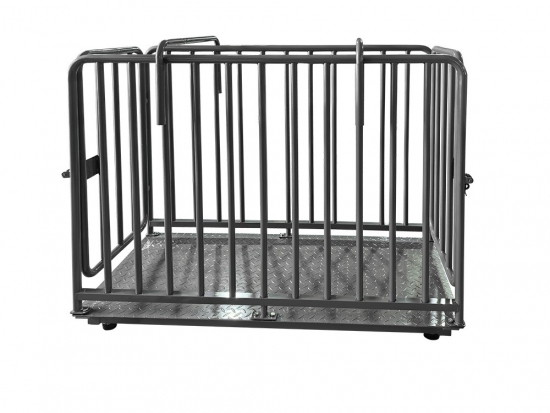

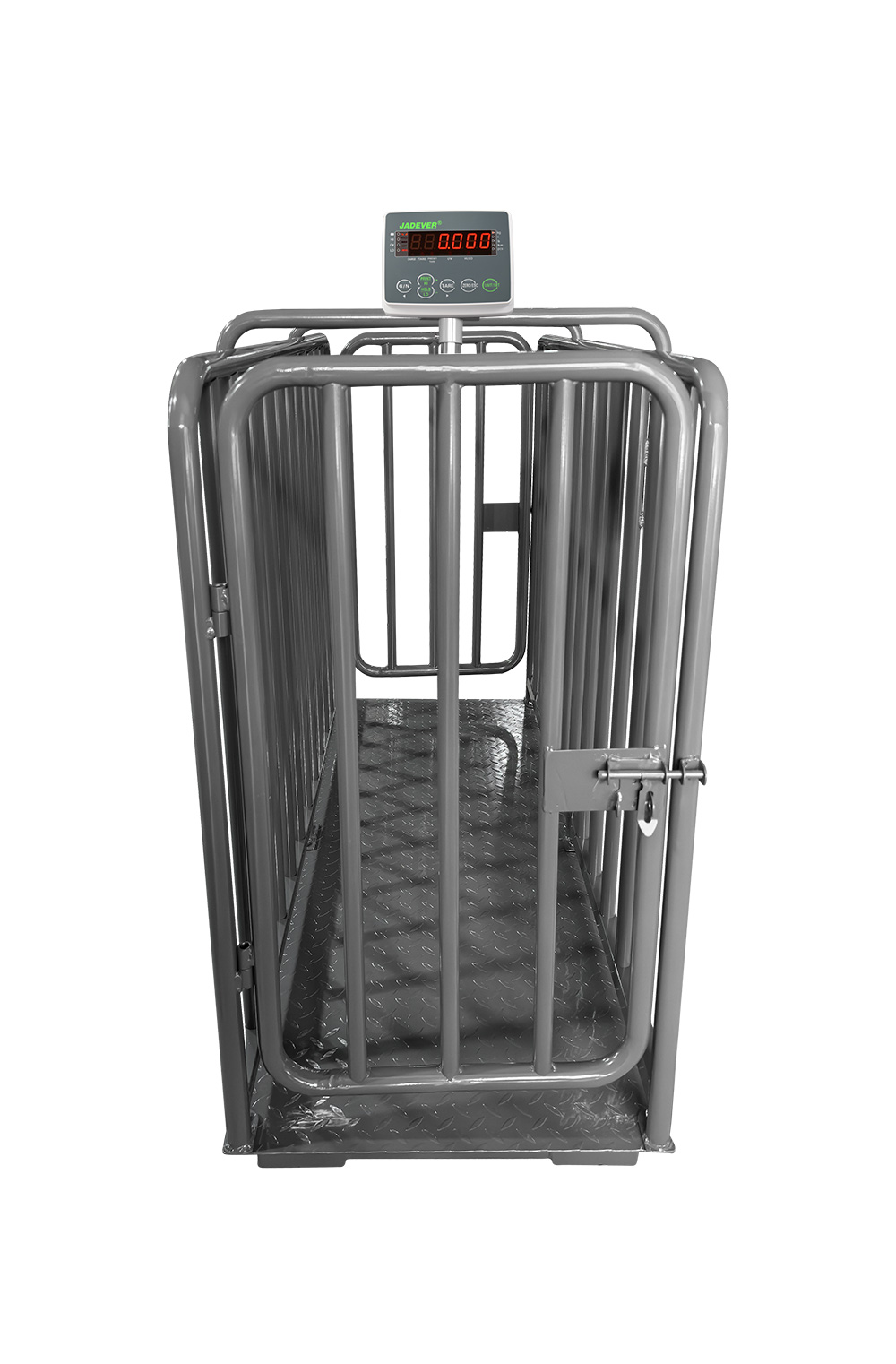

JADEVER Mild Steel Livestock Scale

Livestock Scale All the electronic parts are installed on the top of the scale. Curved control for economic durability. You could wash down the scale every day.  All the cables go though the inside of the scale. If you want to use the scale to weigh horse, we could also customize the width,the length and the height of the fence.   Features: 1. Powerful animal weighing function 2. Pass-through scale body design, fast weighing speed and high accuracy 3. All the electronic parts are installed on the top of the scale 4. Support washing down 5. Support customization of the length, width and height of the fence 6. Special capacity can be customized 7. Ideal for applications in ground, outdoors, factory plant, farm and packing house   Specifications:   Mild Steel Type A：   Mild Steel Type B： Stainless Steel:

JL-02 Load cell for bench  scale  Model JL-02 Model JL-02 Rated Capacities 60/100/150/200/250/300/350/500(kg) Output Impedance 350±5 Ω Rated Output 2.0 mV/V±5% Insulation Impedance ≥5000 MΩ Non-linearity 0.02 %F.S Safe Overload 150 %F.S Hysteresis 0.02 %F.S Ultimate Overload 200 %F.S Repeatability 0.02 %F.S Operating Temperature Range -20~60 ℃ Creep(20min) 0.02 %F.S Recommended Excitation 5~12 VDC Temperature Effect On Output 0.002 %F.S/℃ Maximum Excitation 15 VDC Temperature  Effect On Zero 0.003 %F.S/℃ Construction Aluminum Alloy Zero Balance ±0.0200 mV/V Protection Class IP67 / IP68 Input Impedance 410±15 Ω Cable φ5×15 cm Mode of Connection Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）

JL-01 Load cell for table top scale  Model JL-01 Model JL-01 Rated Capacities(kg) 3,5,6,7.5,10,12,15,20,30,35,40 Output Impedance 350±5 Ω Rated Output 2.0 mV/V±10% Insulation Impedance ≥5000 MΩ Non-linearity 0.02 %F.S Safe Overload 150 %F.S Hysteresis 0.02 %F.S Ultimate Overload 200 %F.S Repeatability 0.02 %F.S Operating Temperature Range -20~60℃ Creep(20min)/DR 0.02 %F.S Recommended Excitation 5~12 VDC Temperature Effect On Output 0.002 %F.S/℃ Maximum Excitation 15 VDC Temperature  Effect On Zero 0.003 %F.S/℃ Construction Aluminum Alloy Zero Balance ±0.0200 mV/V Protection Class IP67 / IP68 Input Impedance 410±15 Ω Cable φ4×45 cm Mode of Connection Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）

GODEX EZ1100Plus Desktop Thermal Transfer Printer is used for medium duty application.

Jadever weighing scale indicator JWI-700W is our new version indicator with high-impact durable ABS housing , which has got OIML certification.

JCO counting scale can count small parts quickly and accurately, saving time in manufacturing applications and reducing waste when filling or packaging. It is available with three displays to simultaneously show unit weight, count and total weight, Use the RS-232 or USB interfaces to connect scale to computers or printers.

JWI-2100 is Jadever new released compact and economic weighing indicator. with bright LED display and unique design of the indicator supporter, it is convenient for you use on the platform, and can connect to PC by Internet cable.

Jadever Hardy Aluminum Bench Scale can be used  in harsh environment
