Brand:
JADEVERItem NO.:
JCB-T2Payment:
EXWProduct Origin:
ChinaLead Time:
2 weeksOrder(MOQ):
30Product Detail

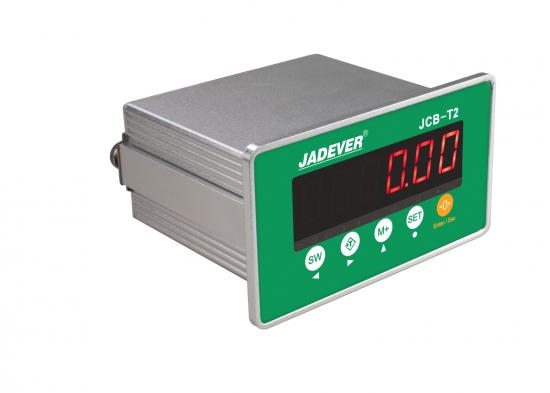

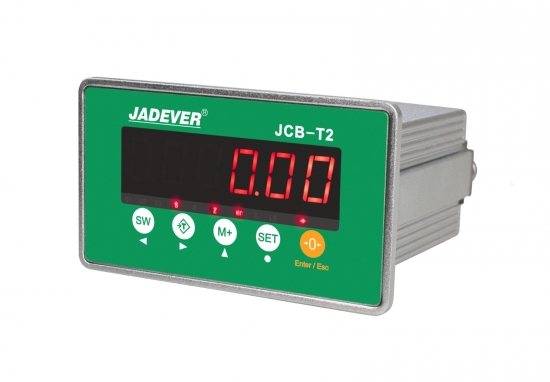

JCB-T2 Weighing Transmitter Indicator
The JADEVER JCB-T2 Weighing Transmitter Indicator is a DIN rail mount industrial weight controller with rugged mini aluminum enclosure, designed for cabinet embedded installation. Equipped with complete weighing parameter calibration functions, it connects to 5-wire analog load cells and supports up to 4 load cells simultaneously.
It features 2 digital input channels for trigger control and 2 relay output channels to manage discharge valves and actuators. Dual communication options (RS485 + RS232) realize stable weight data transmission, plus configurable voltage/current analog output for PLC linkage. Widely applied in automatic batching, tank weighing, filling & unloading industrial automation projects.
Features

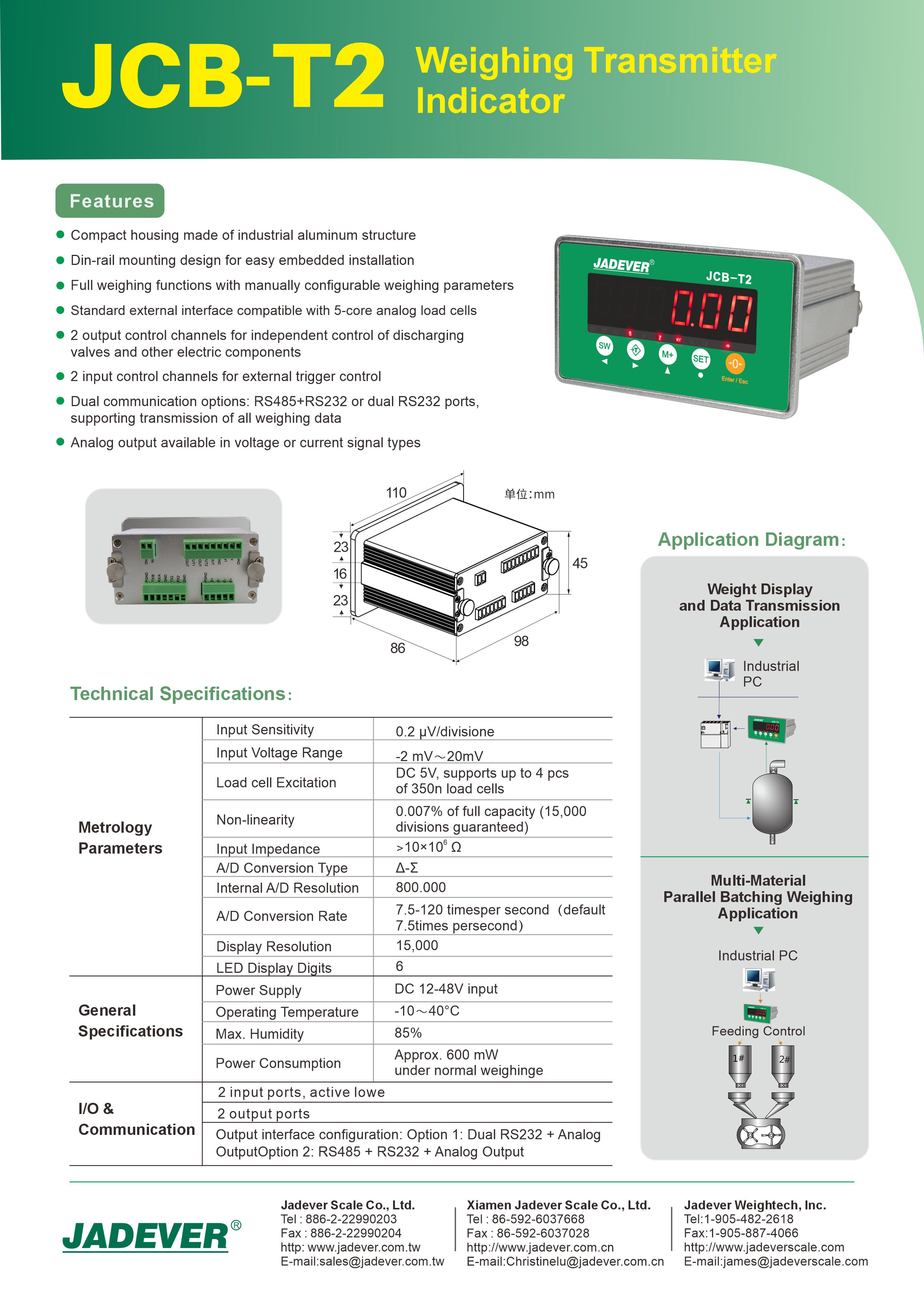

Technical Specification
| Metrology Parameters | Input Sensitivity | 0.2 μV/divisions |
| Input Voltage Range | -2mV ~ 20mV | |
| Load cell Excitation | DC 5V, supports up to 4 pcs of 350Ω load cells | |
| Non-linearity | 0.007% of full capacity (15,000 divisions guaranteed) | |
| Input Impedance | >10 x 10⁶ Ω | |
| A/D Conversion Type | Δ-Σ | |
| Internal A/D Resolution | 800,000 | |
| A/D Conversion Rate | 7.5–120 times/second (default 15 times/second) | |
| Display Resolution | 15,000 | |

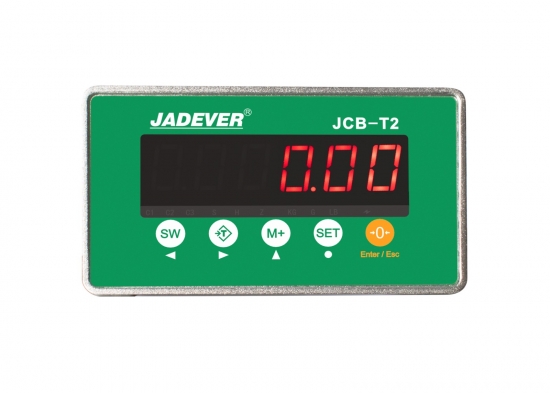

| LED Display Digits | 6 | |
| General Specifications | Power Supply | DC 12–48V input |
| Operating Temperature | -10~40°C | |
| Max. Humidity | 85% | |
| Power Consumption | Approx. 600 mW under normal weighing | |

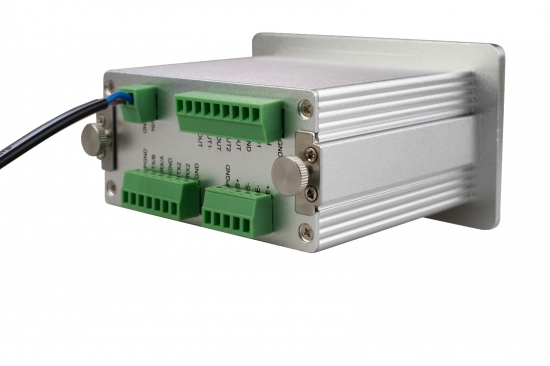

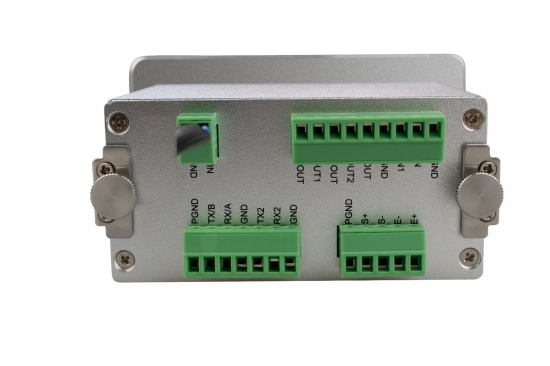

| I/O & Communication | Input ports | 2 input ports, active low |
| Output ports | 2 output ports | |
| Output interface configuration |
Option 1: Dual RS232 + Analog
|
FAQ
Q1: What is the JCB-T2 Weighing Transmitter Indicator used for?
The JCB-T2 is designed for industrial weighing systems, such as automatic batching, tank weighing, filling, and material handling applications. It helps collect and transmit accurate weight data for automation control.
Q2: How many load cells can the JCB-T2 support?
The JCB-T2 can connect with up to 4 analog load cells, making it suitable for different types of industrial weighing equipment and systems.
Q3: Can the JCB-T2 be connected to a PLC system?
Yes. The JCB-T2 supports RS485, RS232, and analog signal output, allowing easy connection with PLC systems and other industrial control equipment.
Q4: How can the JCB-T2 be installed?
The JCB-T2 features a compact DIN rail mounting design with an aluminum enclosure, making it easy to install inside electrical cabinets and control systems.
Q5: What power supply does the JCB-T2 require?
The JCB-T2 supports a DC 12–48V power supply and is suitable for various industrial automation environments requiring stable weighing data transmission.
