Farm Weighing Scales for Livestock

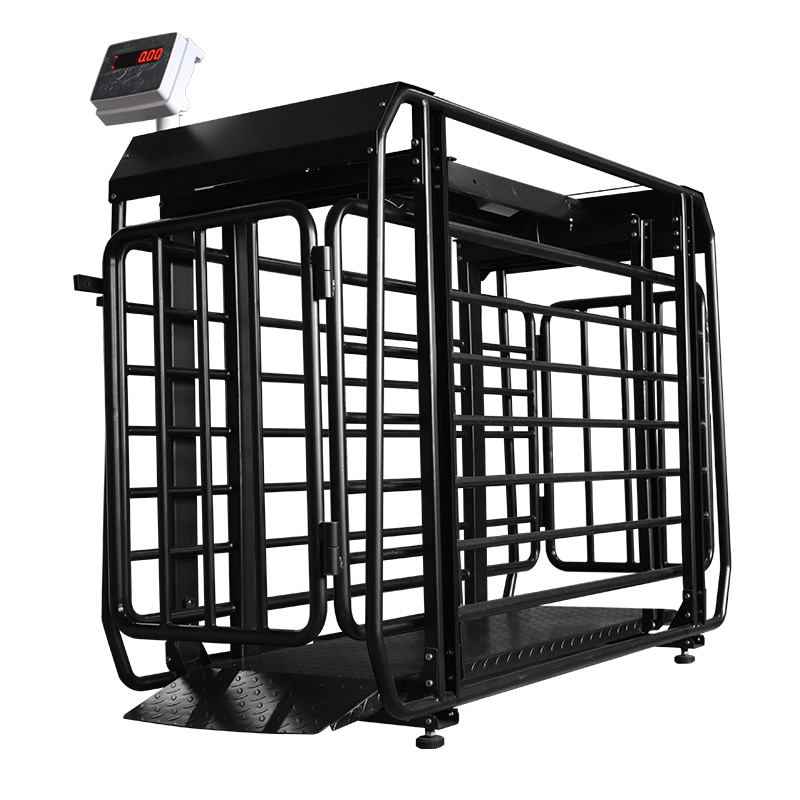

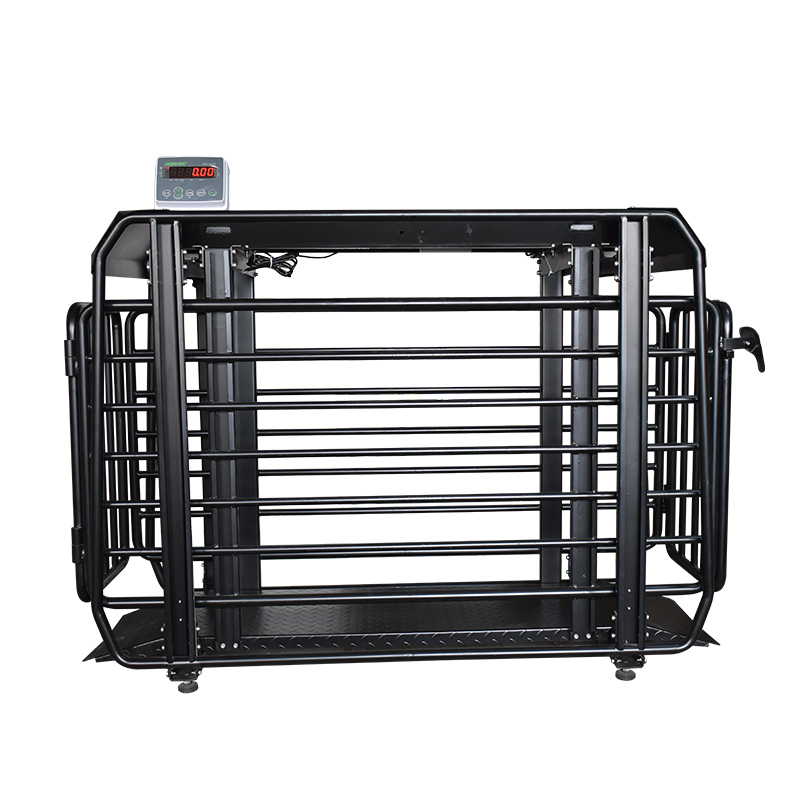

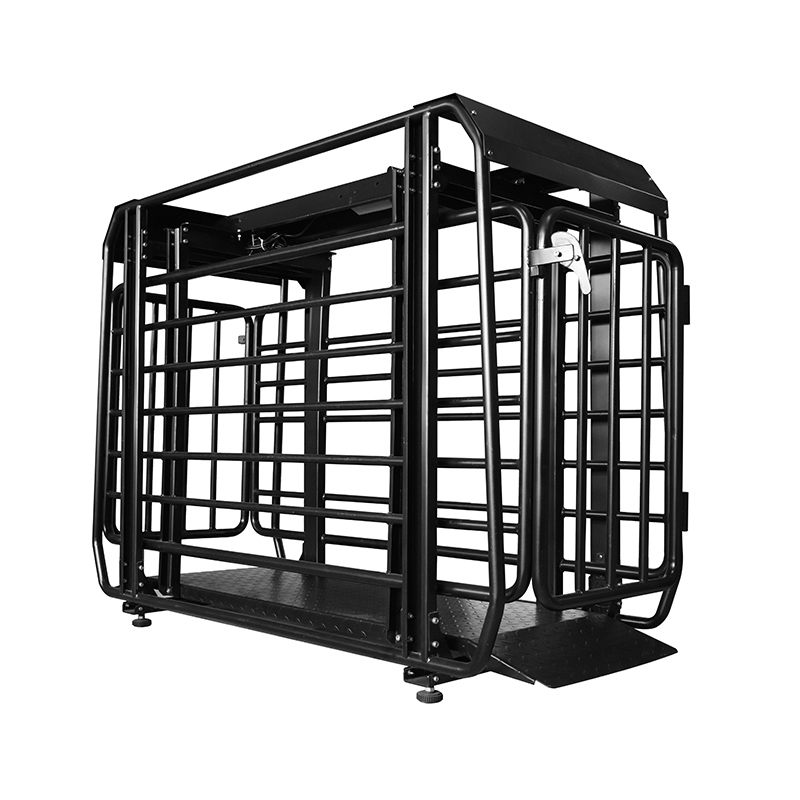

The JADEVER Mild Steel Livestock Scale boasts a powerful animal weighing function. It adopts a pass - through scale body design, enabling fast weighing speed and high accuracy. The weighing indicator is installed on the top of the scale for easy reading. It supports customization of the length, width, height of the fence and special weighing capacity. Suitable for various scenarios such as ground, outdoors, factories, farms and packing houses, it provides an efficient and precise solution for weighing all kinds of livestock.

JL-02 Load cell for bench  scale  Model JL-02 Model JL-02 Rated Capacities 60/100/150/200/250/300/350/500(kg) Output Impedance 350±5 Ω Rated Output 2.0 mV/V±5% Insulation Impedance ≥5000 MΩ Non-linearity 0.02 %F.S Safe Overload 150 %F.S Hysteresis 0.02 %F.S Ultimate Overload 200 %F.S Repeatability 0.02 %F.S Operating Temperature Range -20~60 ℃ Creep(20min) 0.02 %F.S Recommended Excitation 5~12 VDC Temperature Effect On Output 0.002 %F.S/℃ Maximum Excitation 15 VDC Temperature  Effect On Zero 0.003 %F.S/℃ Construction Aluminum Alloy Zero Balance ±0.0200 mV/V Protection Class IP67 / IP68 Input Impedance 410±15 Ω Cable φ5×15 cm Mode of Connection Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）

Jadever JCB-M1 weighing control box has industrial ABS material shell, compact size and easy to store.

Main technical data Rated load kg 3/5/10/20/40 Accuracy class C3 Maxinum number of load cell verification intervals nmax nmax Minimum load cell verification intervals Vmin Vmin Combined error %FS %FS Creep  %FS/30min %FS/30min Temp. effect on sensitivity %FS/10℃ %FS/10℃ Temp. effect on zero output %FS/10℃ %FS/10℃ Sensitivity  mv/v 2.0±0.2 Input resistance  Ω 406±6 Output resistance Ω 350±3 Insulation resistance MΩ ≥5000（50VDC） Zero output %FS ≤±2 Compensated temperature range ℃ -10～40 Operating temperature range ℃ -35～65 Recommended excitation voltage V 5～12（DC） Maximum excitation voltage V 16（DC） Safe over load  %FS 150 Ultimate over load %FS 300 Four comer error  0.02% load value Maximum table size mm 250×250

Features: ●Eco-Product; High efficiency and economical ●Large LCD display with green L ED backlight ●Zero/Tare/Simple/Weighing/Simple counting/Accumulation /Net & Gross weight/Check weighing function ●Adjustable capacities, resolutions and parameters ● Supports to four analog load cells ●Power saving design with high efficiency and environment protection. ●Convenient with three power options: Solar energy, Adapter, Li-ion Battery ●In times of strong sunlight, 4 pieces of high quality solar energy panels can provide up to 200mA charging current ●It can work as long as there is sunlight ( no need of direct radiation).And battery is under charging at the same time ●Li-ion battery can be repeatedly used with long service life ●When the battery is fully charged, it can operate normally for up to 200h. When used in a light place, the solar energy will continue to charge the battery, so the indicator can be used for a longer period of time. ●Ideal for applications in outside market, production, packaging, warehouse, inventory, shipping and receiving areas or any other place where power supply is inconvenient Specifications： Model JWI-700S Resolution 1/15000 Weighing Unit pcs /台斤/ lb.oz /  g / kg Display 6 digits, 30mm digit height, LCD display with green LED backlight Dimension(mm) 274 x170x117 Weight Net weight:0.8kg   Gross weight:1 .9kg Power supply Solar energy; 4000mA Li-ion battery; 6V/300mA adapter Load cell excitation DC 3.3v,up to 4 x 350 ohm load cells Certification CE
