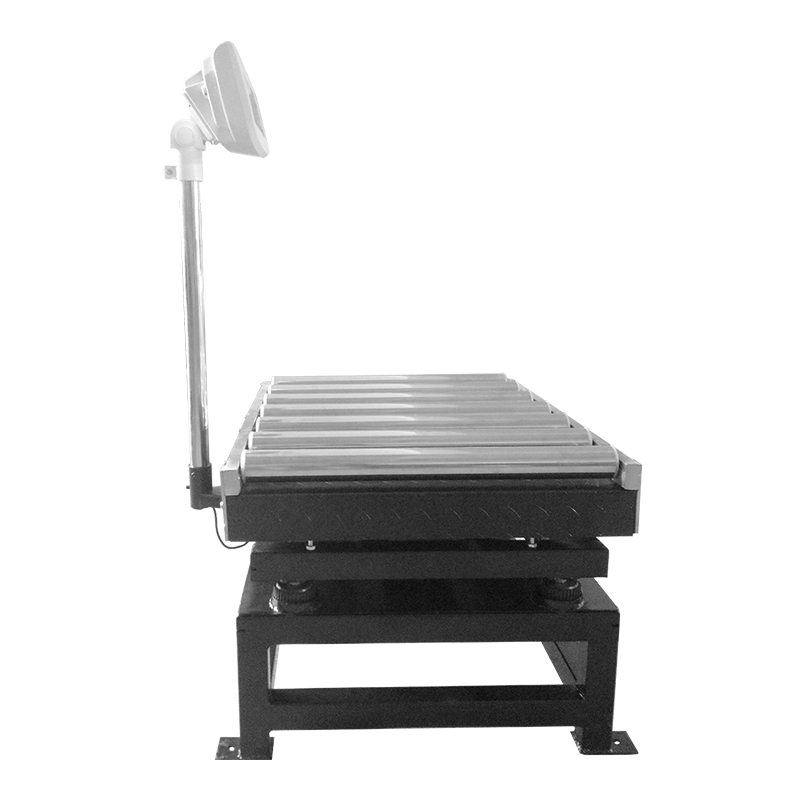

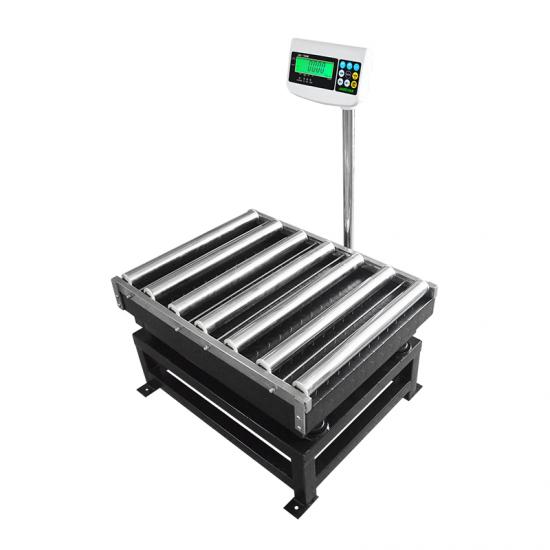

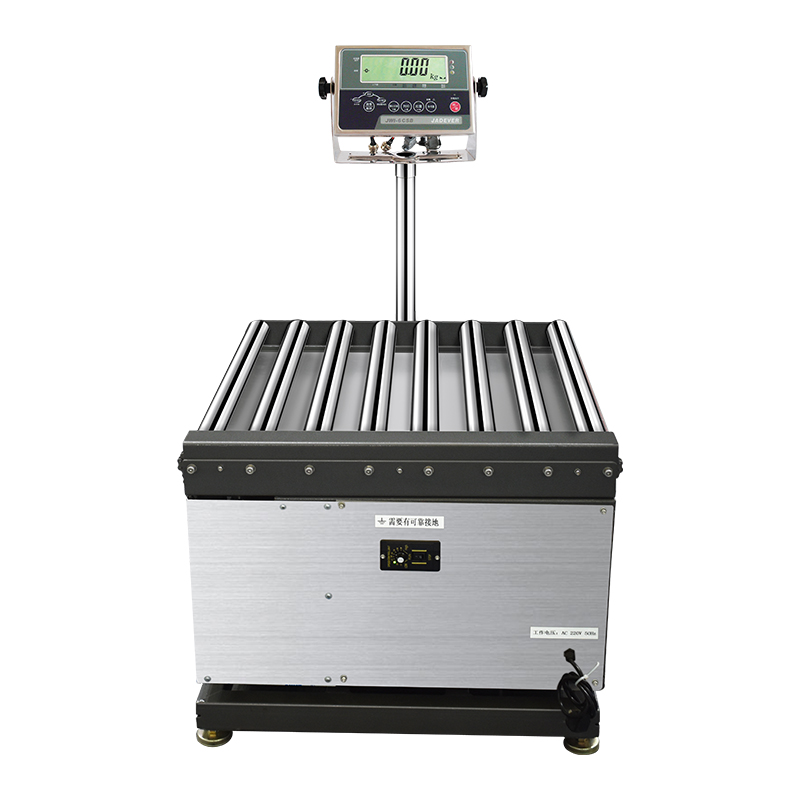

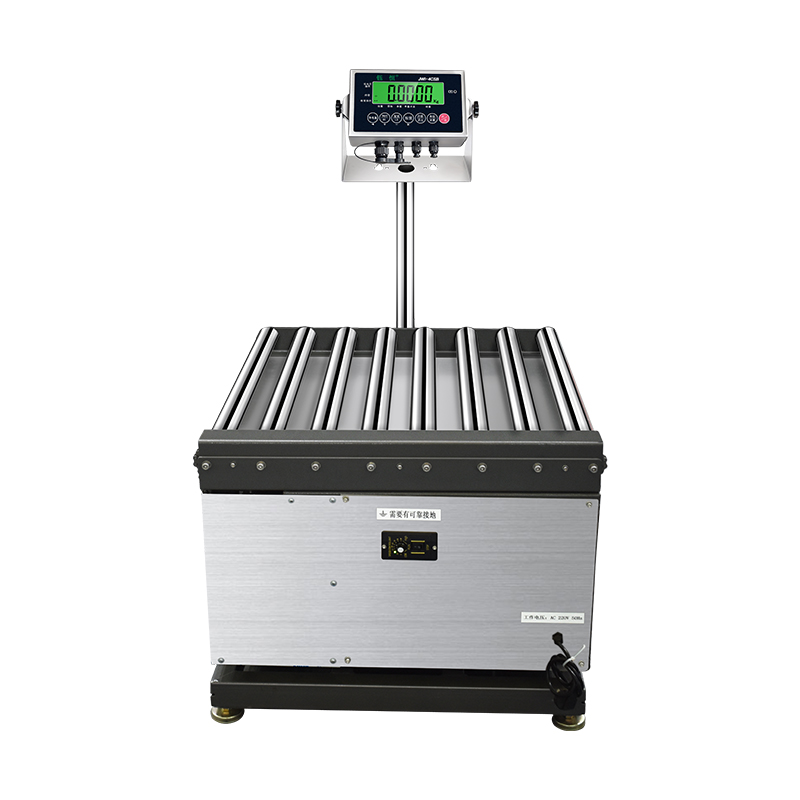

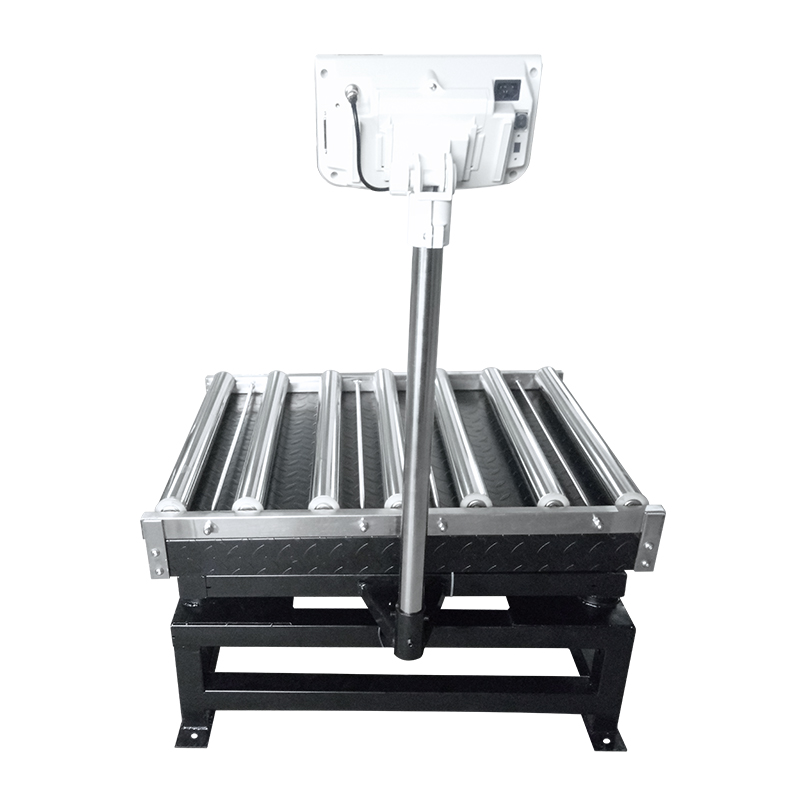

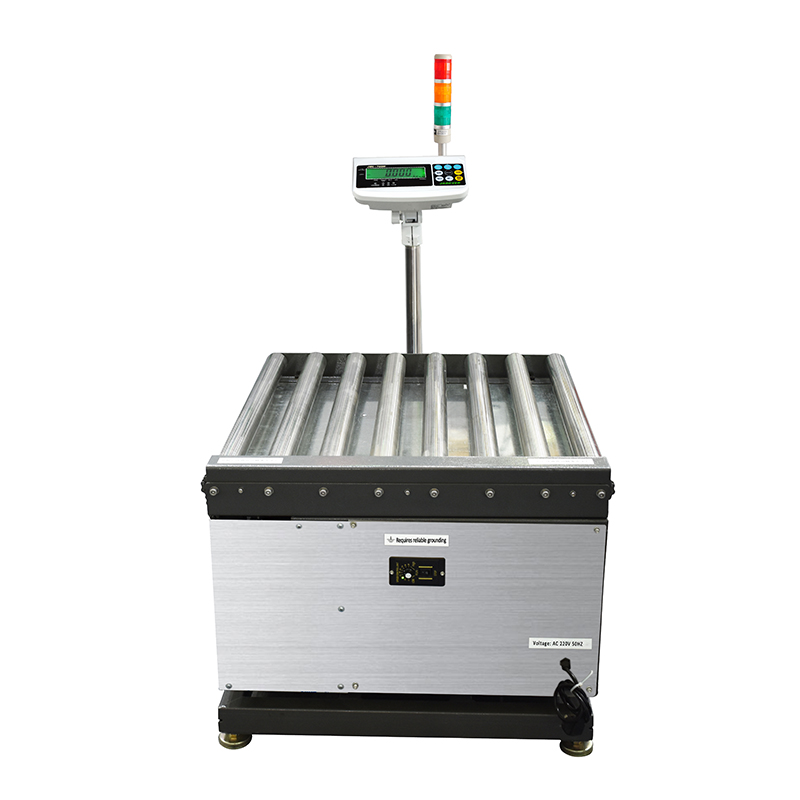

Digital industrial roller weighing scales for packaging

The Jadever low profile floor scale has a 2” deck height, making it easy to load and unload goods with forklift trucks and hand carts.

Jadever wet stainless floor scales are suitable for wet and harsh environments where hygiene and frequent wash-downs are the norm.

JADEVER JLM Pallet Truck Scale helps you easy and safely move heavier loads with weight displayed on the weighing indicator.

Floor scales are perfect for heavy duty weighing, They can be loaded with ease using a fork truck. If the optional ramps option is selected they are also suitable for loading via pallet truck.

JWI-531T waterproof three color function indicator Features: ● 304 stainless steel housing ● Fully sealed circuit board design, with waterproof, moisture-proof, dust-proof performance ● LCD display. Three-color backlighting combined with checkweighing function facilitates a more intuitive feeling of the weighing status.  ● Functions of pre-tare, checkweighing, accumulation, animal weighing, low battery alert, etc. ● Automatic shutdown and power saving functions ● Single and multi-point calibration to ensure accuracy ● Filter level and weighing speed can be selected according to the environment ● Optional RS-232 interface ● Widely used in high humidity environments, seafood markets,food processing plants, etc. Specifications: Model JWI-531T External Display Accuracy 1/12000  or  1/15000 Unit Selection kg、g、lb、lb.oz/斤、pcs Display Screen (mm) 6-digit LCD display, character height 37 Input Sensitivity 0.2 microvolts/division Input Voltage Range -2 mV~20 mV Sensor Excitation Voltage DC 5V, can be connected to four 350 ohm sensors Non-linearity 0.003% of full scale weight Input Impedance Greater than 10×106 ohms A/D conversion method △-Σ A/D internal resolution 700,000 A/D conversion output period Approx  6~10 times per second Power supply AC: 110/220V, with built-in lead-acid battery (6V/4Ah) External Dimension(mm) 238×93×182

Operation: 1. The weight is too low and the screen shows yellow.  LOW light is on, showing LOW 2. Weight up to standard, screen shows green. OK light is on, showing OK 3. When overweight, the screen shows red and alarm. HI light is on, showing HI Feature: 1. Resolution up to 1/15000 2. Single point and linear calibration available Hold function in peak, stable, or key operation 3. Lower/upper limit weighing alarming function 4. Zero range setting and filter setting for counting under various condition 5. Accumulation, Accumulation Display and Accumulation clear functions 6. RS-232/Relay/Blue Tooth/U-KEY connector/WP wireless print/U-disk module/ Wifi/Ethernet(optional) 7. Ideal for applications in production, packaging, warehouse, inventory, shipping and receiving areas Specifications: Model JWI-3000W Resolution 1/15000 Display 142*46mm, LCD 6 digits Housing ABS Weighing units pcs, 斤, Ib ,oz ,g, kg Dimension(mm) 222*176*85 Load cell excitation AC 5V, Up to 8*350 ohm load cells Power supply DC 9V.0.4A/ rechargeable battery (6V/4AH) Video:

JL-01 Load cell for table top scale  Model JL-01 Model JL-01 Rated Capacities(kg) 3,5,6,7.5,10,12,15,20,30,35,40 Output Impedance 350±5 Ω Rated Output 2.0 mV/V±10% Insulation Impedance ≥5000 MΩ Non-linearity 0.02 %F.S Safe Overload 150 %F.S Hysteresis 0.02 %F.S Ultimate Overload 200 %F.S Repeatability 0.02 %F.S Operating Temperature Range -20~60℃ Creep(20min)/DR 0.02 %F.S Recommended Excitation 5~12 VDC Temperature Effect On Output 0.002 %F.S/℃ Maximum Excitation 15 VDC Temperature  Effect On Zero 0.003 %F.S/℃ Construction Aluminum Alloy Zero Balance ±0.0200 mV/V Protection Class IP67 / IP68 Input Impedance 410±15 Ω Cable φ4×45 cm Mode of Connection Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
