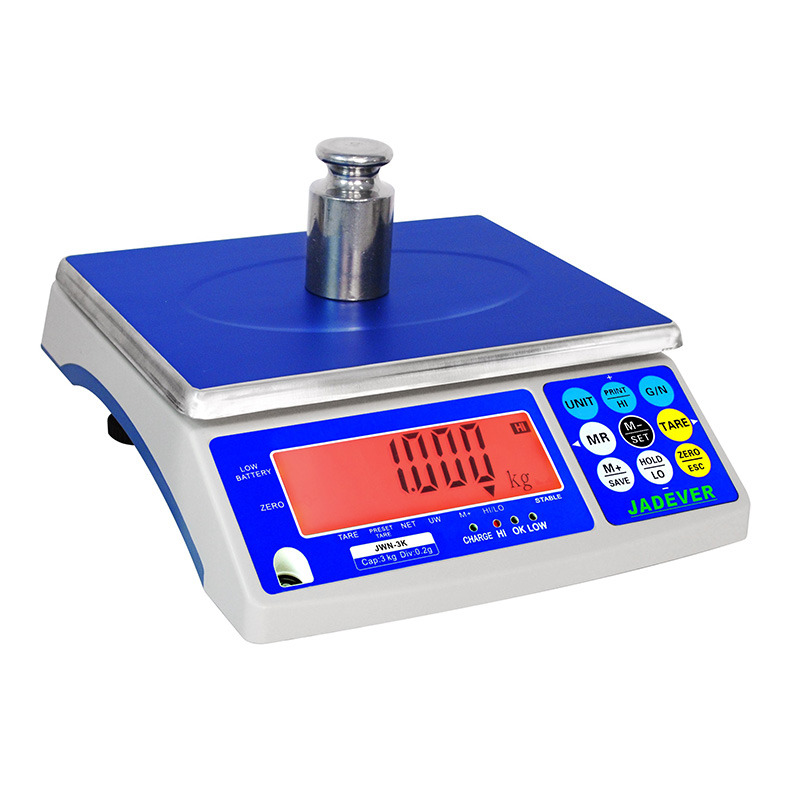

Three color change function weighing table scale

  • Brand:

    JADEVER
  • Item NO.:

    JWN
  • Product Origin:

    China
  • Capacity:

    3kg/6kg/15kg/30kg
  • Division:

    1/15000(standard); 1/30000(standard); 1/60000(optional)
  • Power supply:

    DC 9V, 0.4A / rechargeable battery (6 V/ 4 AH)
  • Product Detail

Features:

1. Check Weighing Scales with Three color change for HI/LO/OK, HI-red, OK-green, LO-orange(optional)

2. Resolution up to 1/15,000(standard) or 1/30,000(standard) or 1/60,000(optional)

3. Single point and linear calibration available

4. Hold function in peak, stable, or key operation

5. Lower/upper limit weighing alarming function

6. Zero range setting and filter setting for counting under various condition

7. Accumulation, Accumulation Display and Accumulation clear functions

8. RS-232/RTC/Relay/Bluetooth/U-KEY connector/U-disk Module/Wifi/Ethernet(optional)

9. Ideal for applications in production, packaging, warehouse, inventory, shipping and receiving areas



Specifications:


Model

JWN-3K

JWN-6K

JWN-15K

JWN-30K

Capacity(kg)

3

6

15

30

Division(kg)

0.2/0.1

0.5/0.2/0.1

1/0.5/0.2

2/1/0.5

Display Height

30mm

Weighing units

kg, g, t, lb, lb.oz, pcs,斤(台斤,港斤,市斤)

Weighing pan(mm)

294 x 228(Stainless Steel, and1.0mmin thickness)

Power supply

DC 9V,0.4A/ rechargeable battery (6 V/ 4 AH)
